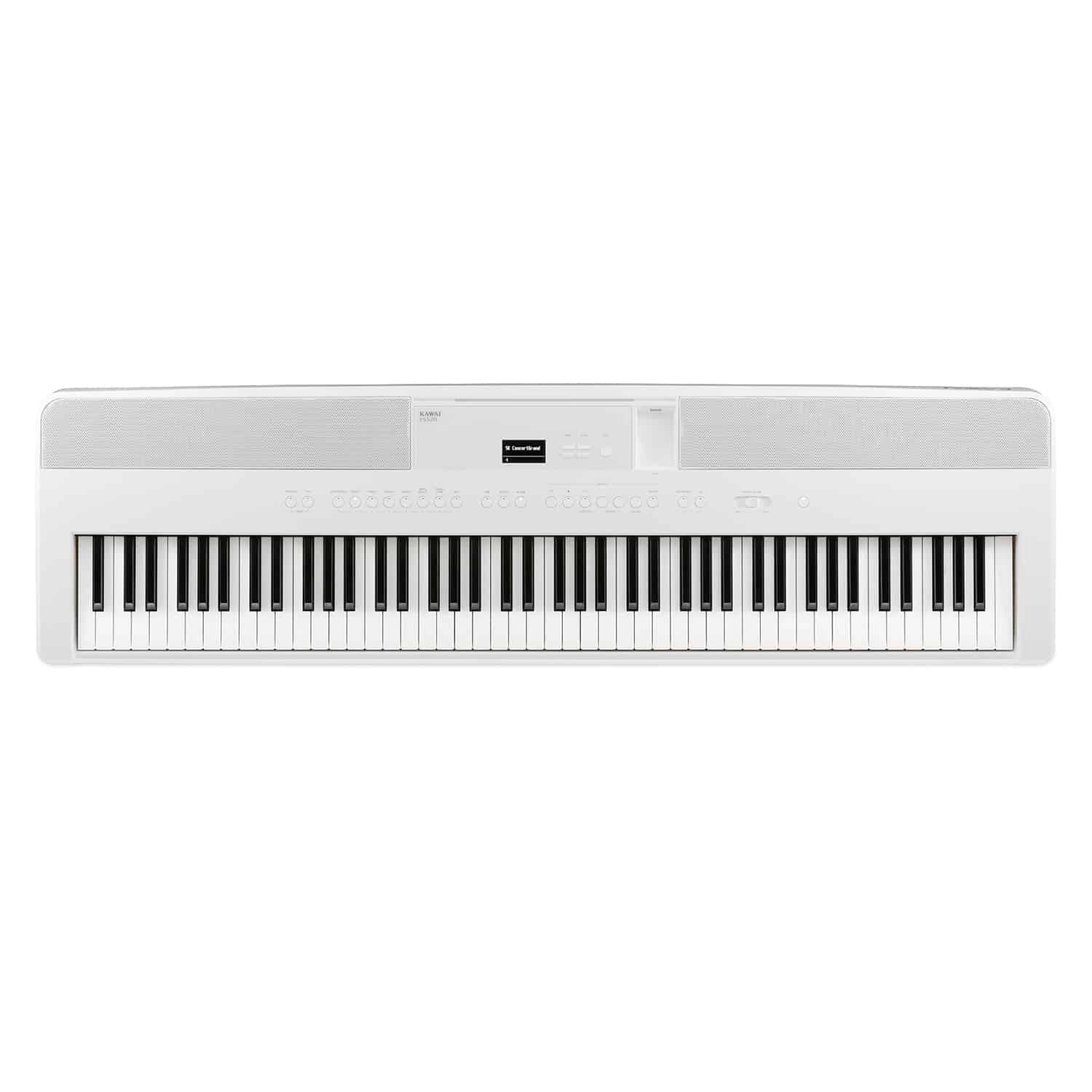

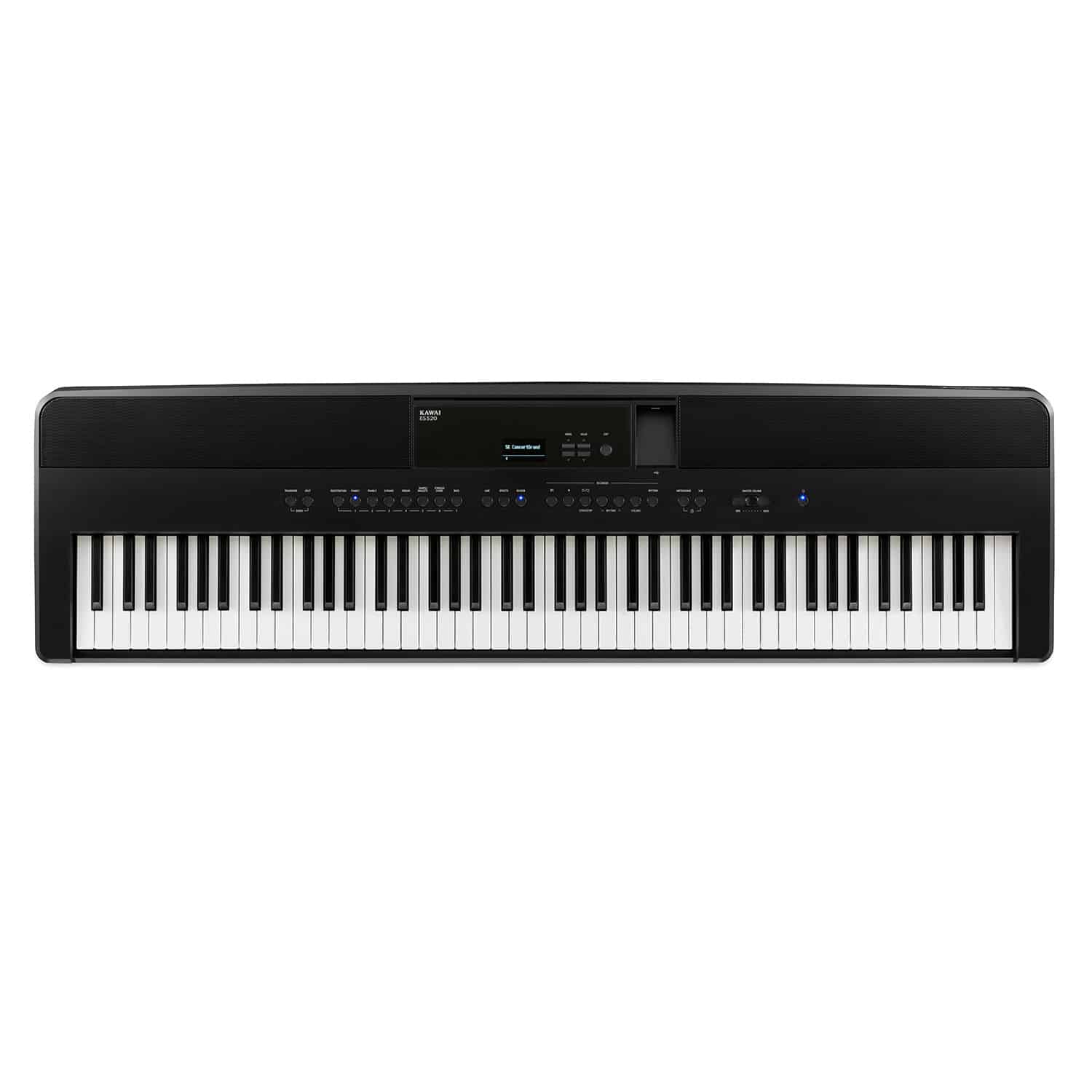

Kawai ES520 Digital Piano

Product Overview

The portable ES series from Kawai has consistently stood among the elite instruments of the portable all-in-one class. The series has traditionally featured an entry-level model sold for around $1,000, and a professional model for over $2,000. Anyone seeking a mid-point option was out of luck – until now.

The new Kawai ES520 combines aspects from both worlds and offers consumers a true mid-range option, something folks have been requesting for years now. Featuring a fully weighted action with triple sensor technology, Kawai’s Progressive Harmonic Imaging sound engine with Shigeru Kawai SK-EX concert grand, a super lightweight cabinet (32 lbs!), and Bluetooth Audio.

For someone seeking a better overall experience to the ES110 without the high-end professional geared features of the ES920, the ES520 will be a very welcome addition to the marketplace.

Action

Kawai has outfitted the ES520 with the current generation Responsive Hammer II Compact Action (RHC-II), which is an evolved version of the RHC-II action featured in the ES110. The central improvement is that while the RHC-II in the ES110 utilizes a double sensor, the new incarnation features a triple sensor for greater accuracy and potential expression. The key construction has also been further reinforced with different cushioning, creating a feel closer to a true acoustic piano. You can also find this action in the hugely popular KDP110.

Overall, it’s a forgiving action that’s medium-weighted, touch-sensitive with an excellent track record of maintenance and wear. Kawai developed its 3-sensor Responsive Hammer Compact II action used in the ES520 to capture the distinctive feel of an acoustic grand piano. It doesn’t have an escapement on the action, which most beginners won’t notice or miss, All around, a very satisfying action to play on!

Sound Engine

The ES920 utilizes Kawai’s Progressive Harmonic Imaging Sound Engine (PHI). The PHI engine can be found in the more expensive CN series home digital pianos and is upgraded over the more basic Harmonic Imaging engine found in the ES110, but not as advanced as Kawai’s top sample-based engine, Harmonic Imaging XL, which can be found in the more expensive ES920.

The PHI engine features 88 note individual key sampling, Kawai’s newest SK-EX Concert Grand Piano sample set, the EX Concert Grand Piano, and 192 notes of polyphony. Combined with the dual speaker system and 40 watts of power (amps developed in concert with audio company Onkyo), the ES520 delivers a very satisfying piano sound with surprising power. In fact, the ES520 matches the ES920 with regard to power output.

The other tones, including electric pianos, organs, and strings are all generally very good, with 34 on-board sounds total.

Connectivity

The connectivity is an area where the ES520 really shines, as the connectivity options presented here showcase the versatility of the ES520, and its viability as an instrument with professional applications.

For starters, the ES520 features Bluetooth MIDI, but also Bluetooth Audio, which is a really nice feature given that the ES110 and ES8 didn’t offer any Bluetooth capability. Bluetooth Audio is especially nice (and rare for the price point) as it essentially turns your ES520 into a large Bluetooth speaker, able to stream music from a tablet or smartphone.

After the Bluetooth, there are 2 headphone jacks, MIDI in and out, ¼” L/MONO R line out, ⅛” stereo line-in, USB to host, and USB to device. There’s also ports for the single damper pedal that comes with the ES920 (F-10H), as well as a port for the optional 3 pedal add on (GFP-3 or F-302.) All of these connectivity options mean the ES520 is equipped for both studio and stage use.

Notable Features

Given the total package of what the ES520 offers for the price point, it’s a bit challenging to zero in on any one particular feature as a highlight. That said, the fact that the ES520 features Kawai’s PHI sound engine, is pretty significant. This same sound engine is used in the CN39, which costs almost double the price! Never before has Kawai offered this level of sound quality for this price point.

Conclusions

Kawai really deserves credit for listening to the market, and responding to the request for a mid-range, all-in-one portable option. The ES520 fulfills this role, and does so very convincingly. For anyone looking at an instrument in this category and price range, the ES520 will surely be regarded among the class leaders for years to come.

Kawai ES520 Owner’s Manual

• [English] ES520 Owner’s Manual

Keyboard		Responsive Hammer III action - 88 keys - Grade-weighted hammers - Ivory Touch white key surfaces - Let-off simulation
Pedal		F-10H pedal unit - Damper (with half-pedal support)
Piano Sound		Progressive Harmonic Imaging (PHI) - 88-key stereo sampling - 192 note maximum polyphony
Piano Resonance		- Damper Resonance - String Resonance
Piano Adjustment		Virtual Technician (17 parameters) - Touch Curve (incl. User Touch Curve) - Voicing (incl. 88-key User Voicing) - Damper Resonance - Damper Noise - String Resonance - Key-off Effect - Fall-back Noise - Hammer Delay - Topboard Simulation - Decay Time - Minimum Touch - Stretch Tuning (incl. 88-key User Tuning) - Temperament (incl. User Temperament) - Temperament Key - Key Volume (incl. 88-key User Key Volume) - Half-Pedal Adjust - Soft Pedal Depth
No. of Sounds		34
Reverb		6 types
Other Effects		11 types + 4 combination effects + amp simulator
Speakers		(8 x 12) cm x 2
Output Power		20 W x 2
Display		128 x 64 pixel OLED
Music Rest		Detachable type (included)
Dimensions	Width	52 3/4" (134 cm)
	Depth	14 2/3" (37.5 cm)
	Height	5 2/3" (14.5 cm) (not including music rest)
Weight		32 lbs (14.5 kg)
Available Finishes		Black Snow White
Basic Functions		Dual Split Four Hands Transpose Tuning
Internal Songs	Sound Demo	23 songs
Internal Recorder	Total Memory	Approximately 5,000 notes
	No. of Songs	3 songs
	Parts	1 track recorder
Metronome	Time Signatures	1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8
	Drum Rhythms	Rhythm Section - 100 styles
Bluetooth *		Bluetooth (Ver. 4.1; GATT compatible) Bluetooth Low Energy MIDI Specification compliant, Bluetooth Audio
USB Audio Recorder	Playback	SMF
App Functions		Virtual Technician app (iPad)
Connector Jacks	Headphone	2 (1/4",1/8 “ )Stereo jacks
	MIDI	MIDI IN, MIDI OUT
	Line Out	1/4" L/MONO, R [unbalanced]
	Line In	1/8" Stereo
	USB to Host	✔
	USB to Device	✔
	Others	Damper/Soft (for GFP-3/F-302) Damper (for F-10H)
Power Consumption		18 W (PS-154 AC adaptor)
Bench		Non-adjustable bench
Others		Warranty Card * Owner's Manual Music Rest F-10H damper pedal (with half-pedal support)
